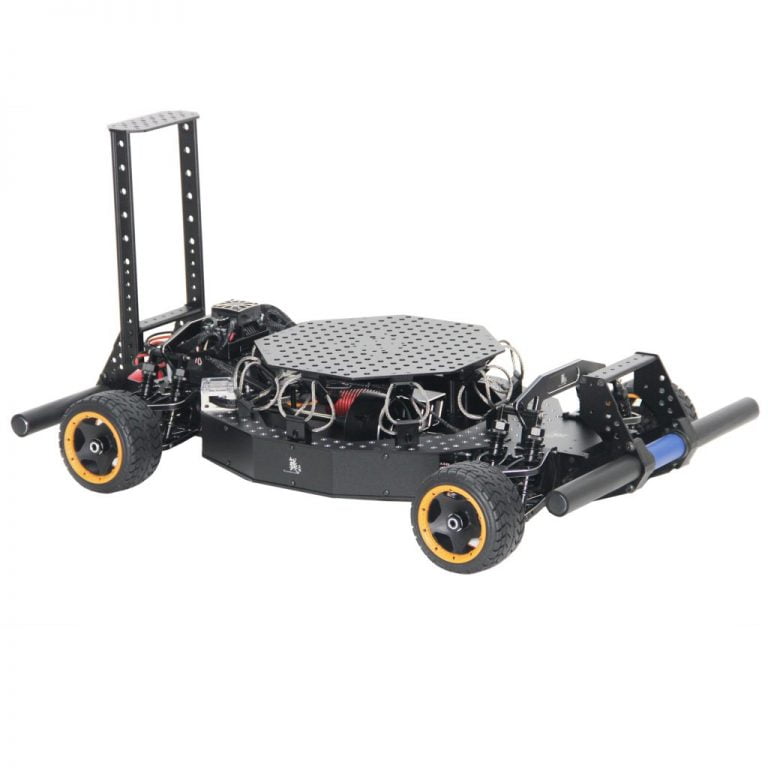

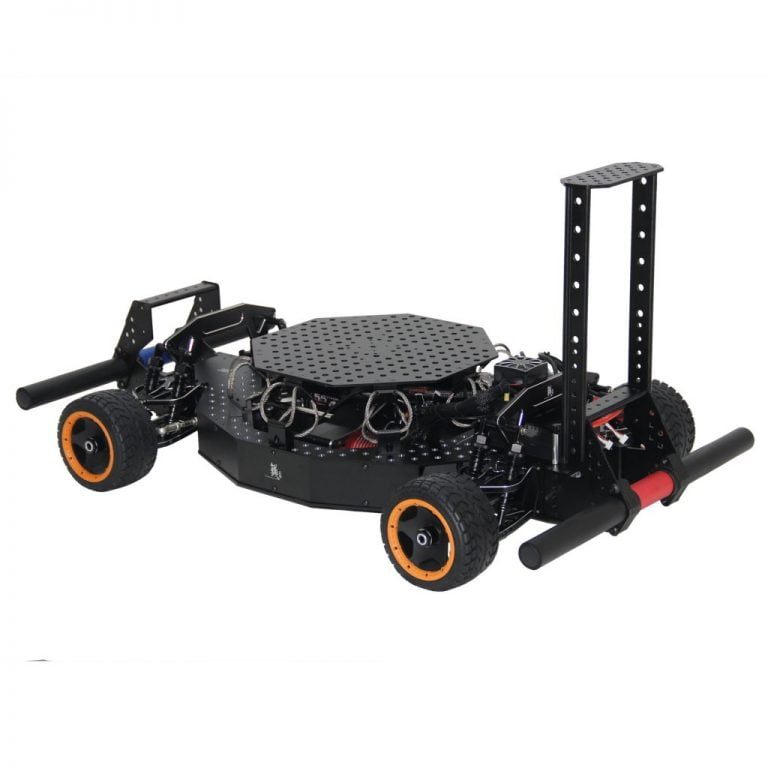

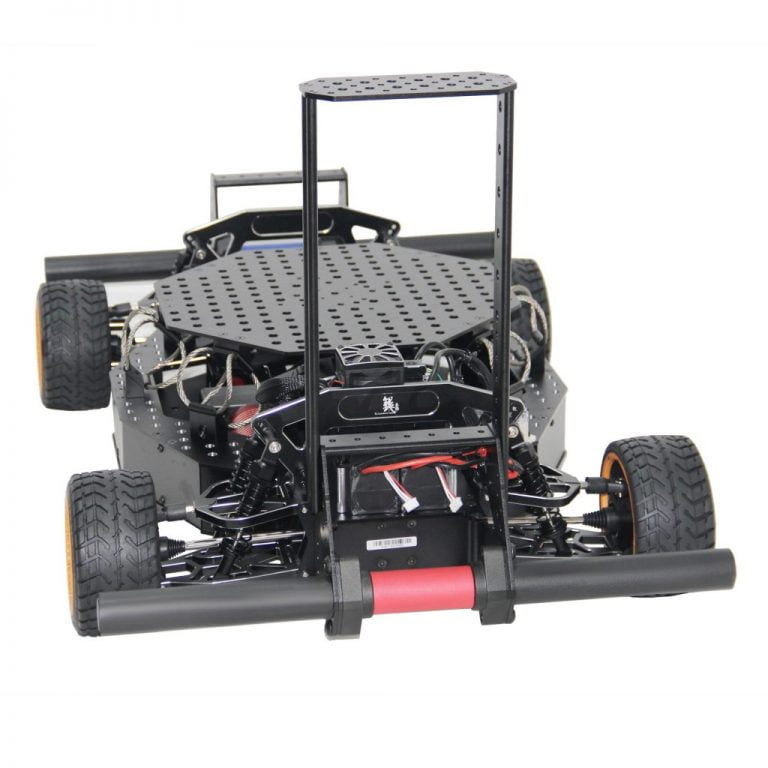

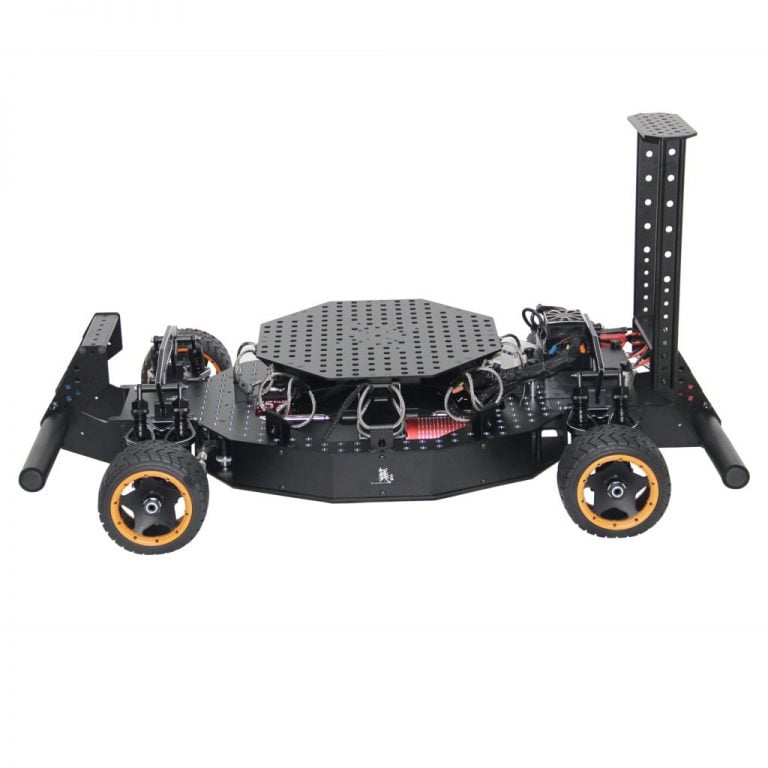

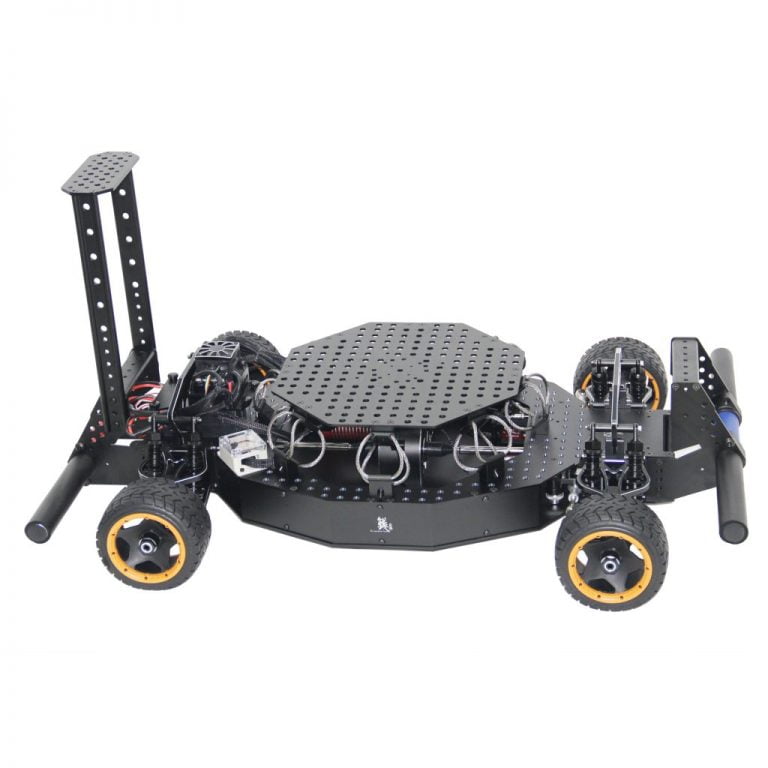

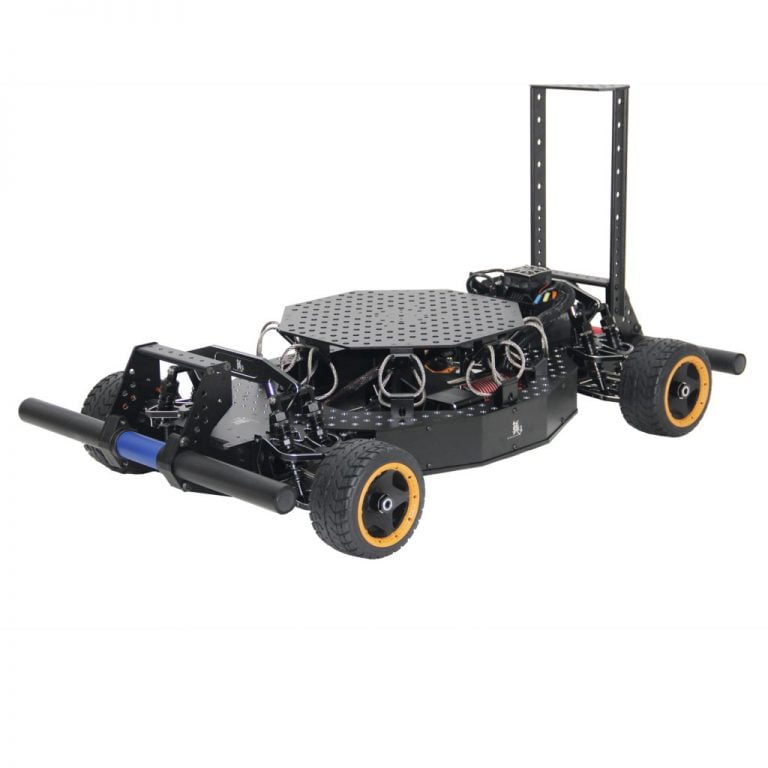

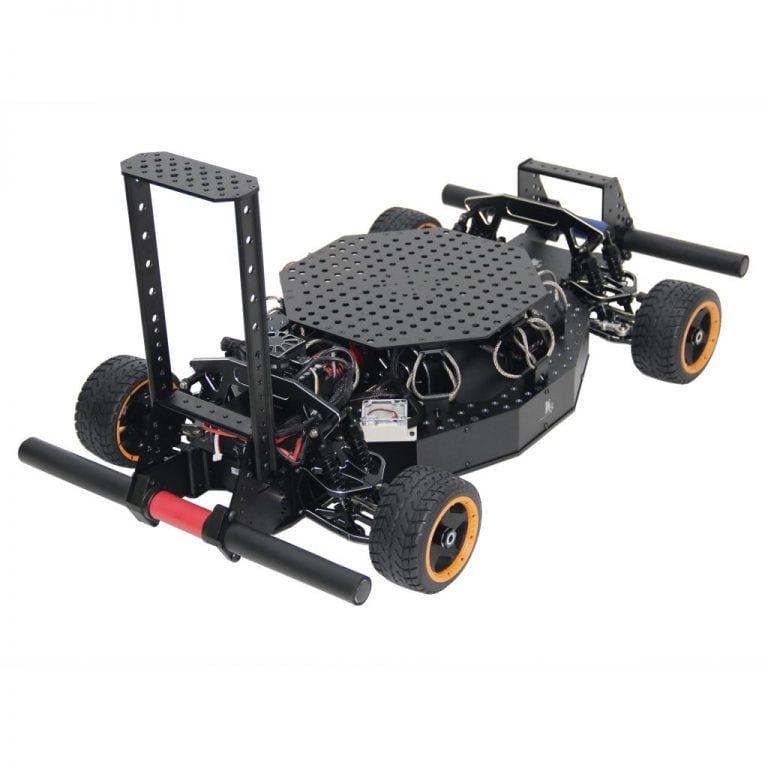

Name: 4WD RC Gimbal Car (Flash 4L) OEM for KA LOK STUNT TEAM
Model: SK MX4L OEM
Functions:
All terrain Cine Camera Shooting car, Start, accelerate, and stop smoothly. Good linearity.

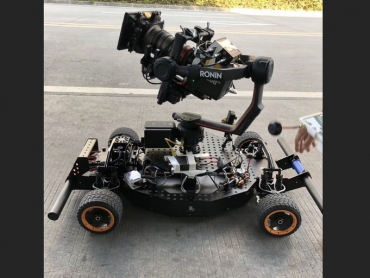

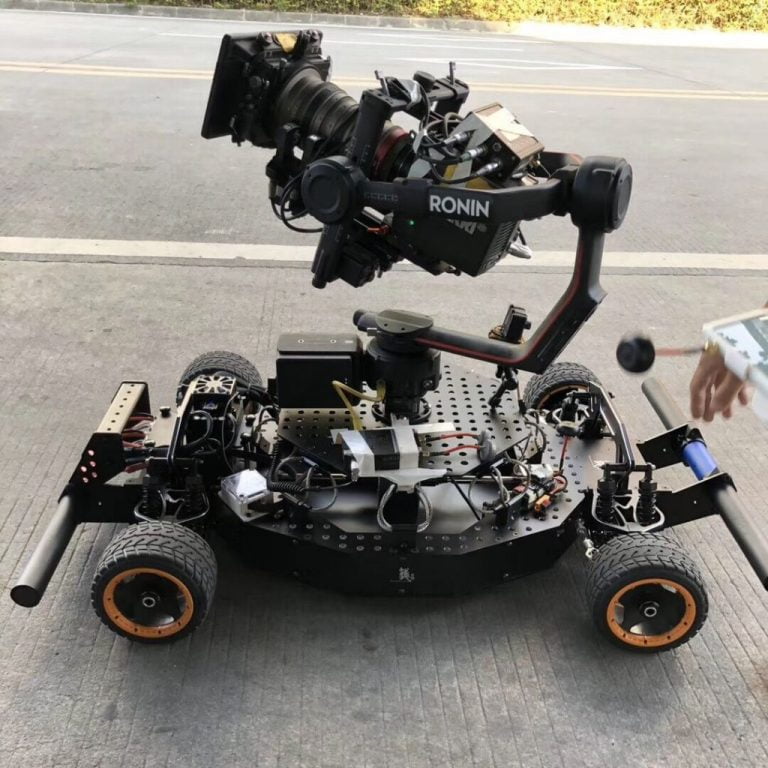

SK MX4L Flash 4 is new and specially designed for DJI RONIN 2 and professional film and television shooting, the car is lengthened and widened, and it can be kept stable during high-speed shooting. It is suitable for low-angle sports and shooting. The car has good off-road and shock absorption performance. Four-wheel steering, easy to operate, smooth running, sensitive steering, full of power, suitable for all kinds of roads and scenes, and optional track modification kit, suitable for shooting in desert, snow and other scenes. Large load, can be equipped with DJI shadow 2 and professional camera, which makes the camera’s position and angle more flexible and diverse, giving a super smooth and stable picture enjoyment.
Unique damping system helps eliminate vibration on the ground caused by the collision, and this means a low and steady and has many potential applications. There are not the problems about lack of space for other stabilizer caused by too tall.
Features:
– 4.0mm 6061 T6 aluminum alloy chassis, full metal material.
– belt drive.
– OEM logo for KA LOK STUNT TEAM
– OEM front and back amount pillar for additional device
– 4WD Version, four-wheel steering with easy handling and running smoothly, steering is very flexible, high level metal frame.
– Start, accelerate, and stop smoothly. Good linearity.
– Maximum speed: 60km / h
– Maximum load: 30kg. Low angle, sports and shooting, compatible with DJI, Talta, Zhiyun, Feiyu, Freefly and other brands of three-axis stabilizer and professional Cine Camera.
Esp. suitable for DJI RONIN2 and professional Cine Camera.It is suitable for film-makers.
– 300A sensitive brushless ESC
– 500KV sensitive brushless motor
– Dual battery power system
– Full metal independent suspension hydraulic shock absorption system, steel wire damping + professional rubber damping ball triple damping system
– 2.4G Futaba 4PLS remote control
– Tire: suitable for different terrain flat road, off-road.
– Damping system: the middle is steel damping to ensure picture stability when starting and stopping time. Hydraulic shock absorber
Independent system parts are not deformed steel wire, shock resistance vibration absorption equilibrium
With light, solid alloy fittings, even if the road bumps, but also to maintain steady
Technical Parameters:
Products size: 1080*620*310mm (without RONIN)
NW: 27.4KG
The power system: 300A sensitive ESC
500KV sensitive brushless motor
Battery: 2 * 14.8V, 40C, 5200MAH Lipo batteries
Four-wheel steering system, two 55kg servo;
2.4G Futaba 4PLS remote control;
Package（Wooden box）:
Carton Size: 114 * 79 * 31cm
GW: 56.0KG
Including:
Car Frame. 1 set
4 Channel Remote control with receiver. 1 set
500KV sensitive Brushless motor 1pc
300A sensitive ESC 1pc
14.8V, 4S, 40C, 5200mAh Lipo battery 2pc
55KG servo 2pcs
B6 charger 1set
Low voltage alarm 2pc
Spare screws for car. numbers
Multi – function wrench. 1pc
Hexagon screwdriver. 1pc
Tire sleeve. 1pc
Applications: The film “Golden Brothers”, “Big Man”, “Qi Tian Da Sheng 2”, DJI RONIN 2 recommended meeting, such as the RONIN S global promotional Video.
