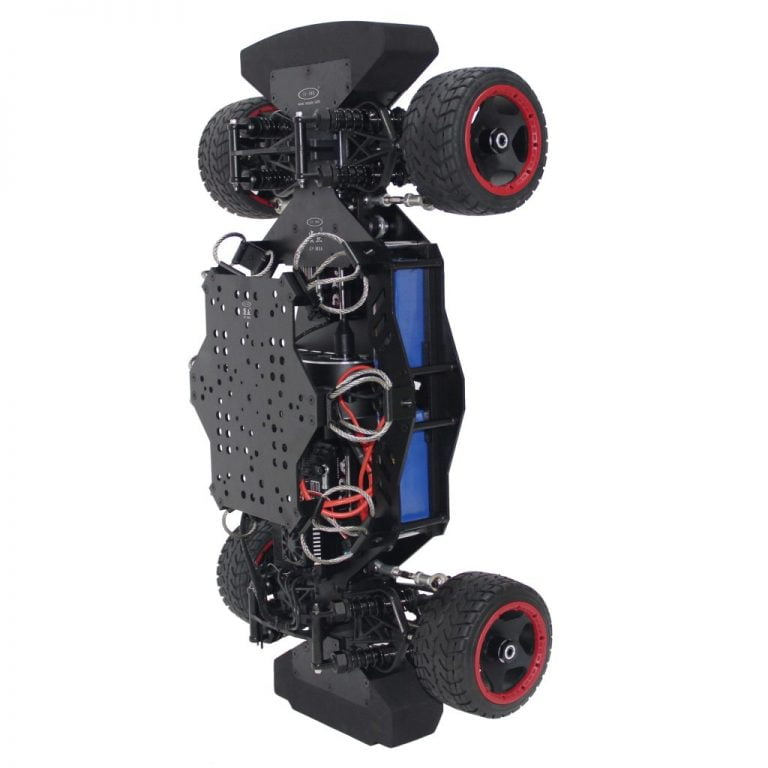

Name: 4WD RC Ronin Gimbal Car (Flash 4N)
Model: SK MX4N
This is the most cost-effective RC Gimbal Car Motorized Camera Dollies.
Functions:
All terrain 4WD Ronin Gimbal Car

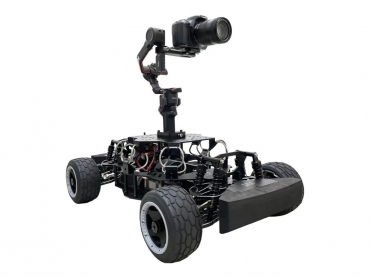

The SK MX4N Flash 4N is suitable for low-angle motion and sports shooting. The car has good off-road and shock absorption performance, four-wheel drive and four-wheel steering, freely controllable, smooth running, sensitive steering, full power, suitable for all kinds of roads and scenes, and track conversion kits. Optional, suitable for shooting in desert, snow and other scenes. Large load, can be equipped with DJI Ronin-S, Ronin-MX, Ronin 2 and professional cine camera, which makes the camera’s position and angle more flexible and diverse, giving a super smooth and stable picture enjoyment.
Unique damping system helps eliminate vibration on the ground caused by the collision, and this means a low and steady and has many potential applications. There are not the problems about lack of space for other stabilizer caused by too tall.
Features:

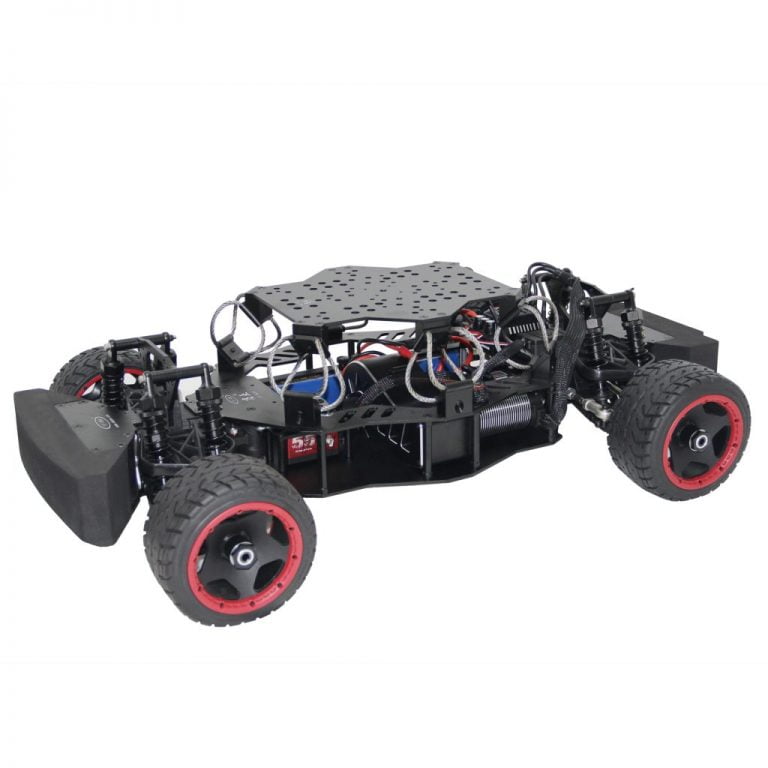

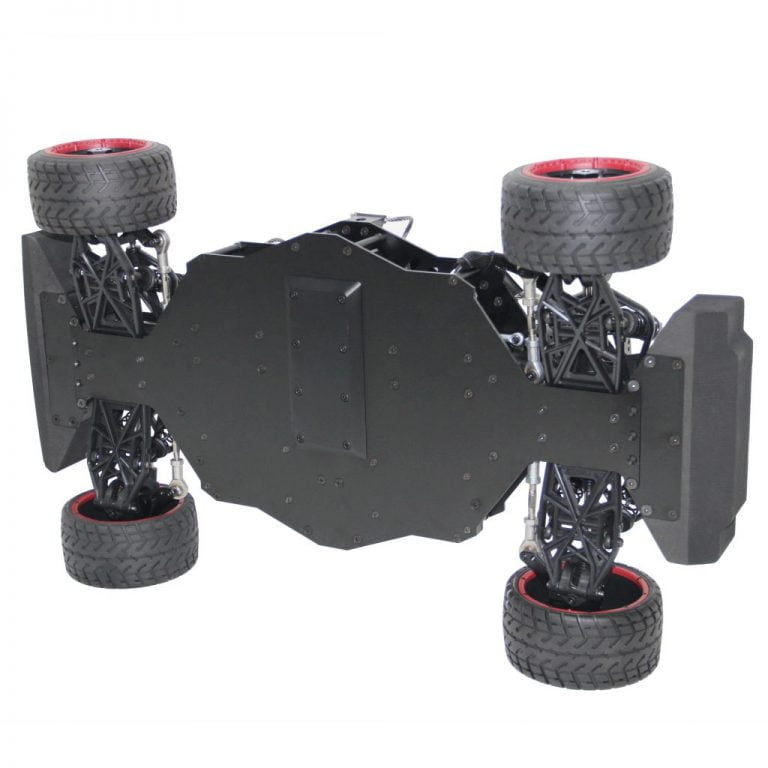

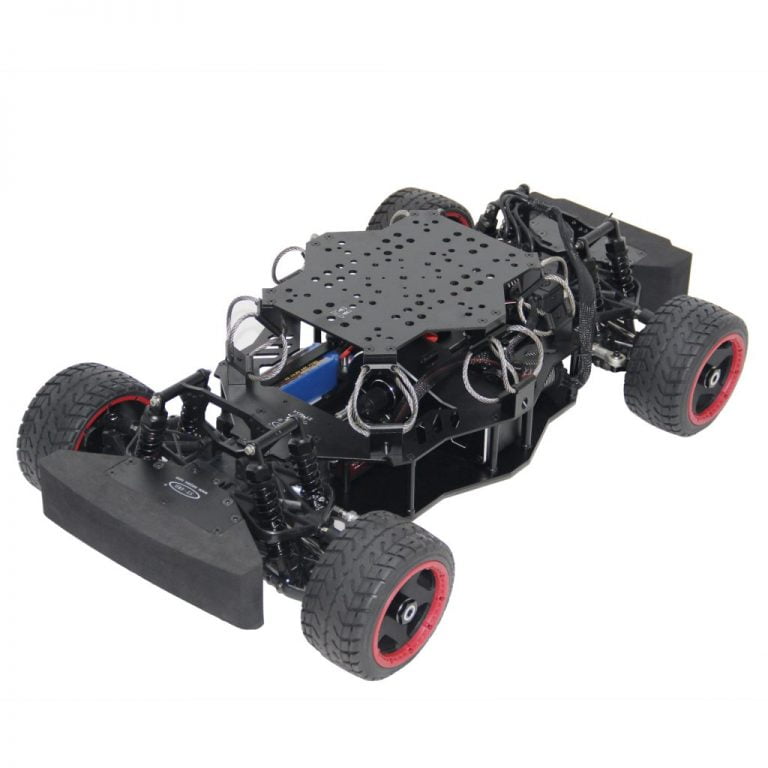

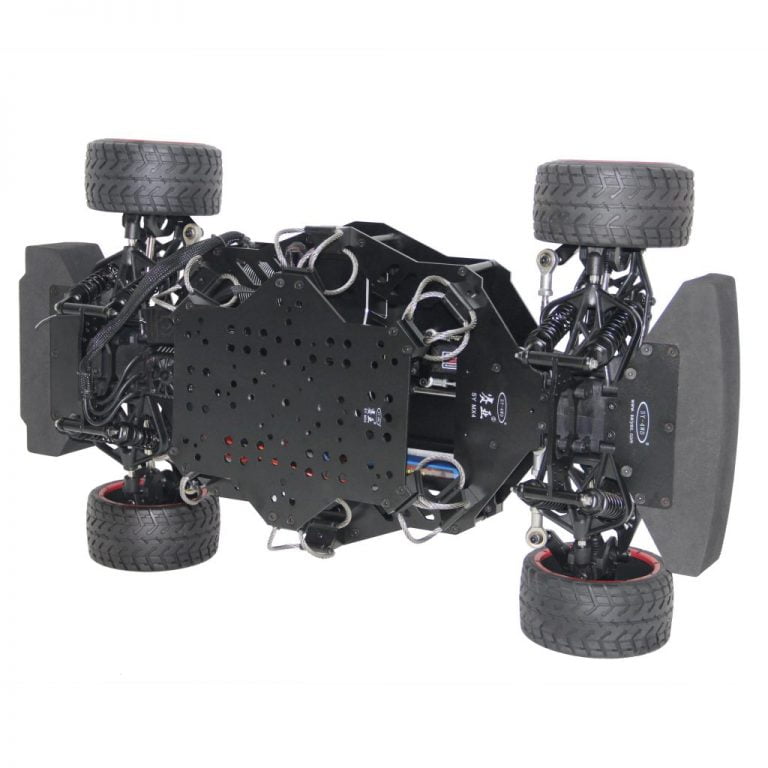

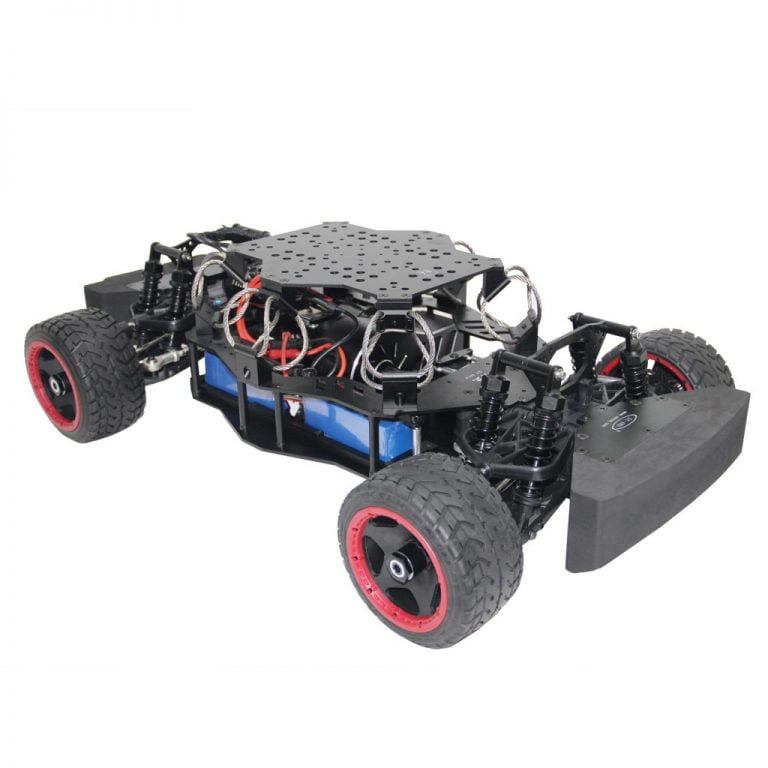

– 4.0mm 6061 T6 aluminum alloy chassis, steel gear and nylon suspension.
– Belt dive to reduce the noise.
– 4WD Version, four-wheel steering with easy handling and running smoothly, steering is very flexible, high level metal frame.
– Maximum speed: 80km / h
– Maximum load: 20kg. Low angle, sports and shooting, compatible with DJI, Talta, Zhiyun, Feiyu, Freefly, Shotover and other brands of three-axis stabilizer and professional Cine Camera.
Esp. suitable for DJI RONIN2 and professional Cine Camera.It is suitable for film-makers.
– 200A waterproof brushless ESC
– 800KV brushless motor
– Dual battery power system
– Full metal independent suspension hydraulic shock absorption system, steel wire damping + professional rubber damping ball triple damping system
– 2.4G 3 Channel LCD remote control
– Tire: suitable for different terrain flat road, off-road, ice surface or snow.
– Damping system: the middle is steel damping to ensure picture stability when starting and stopping time. Hydraulic shock absorber.
Independent system parts are not deformed steel wire, shock resistance vibration absorption equilibrium.
With light, solid alloy fittings, even if the road bumps, but also to maintain steady
Technical Parameters:
Products size: 880*550*280mm (without RONIN)
NW: 18KG
The power system: 200A waterproof ESC
800KV brushless motor
Battery: 2 * 14.8V, 40C, 5200MAH Lipo batteries
Four-wheel steering system, two 55kg servo;
2.4G 3 Channel LCD remote control;
Package:
Carton Size: 83 * 55 * 29cm
GW: 24KG
Including:
Car Frame. 1 set
3 Channel Remote control with receiver. 1 set
800KV Brushless motor 1pc
200A ESC 1pc
14.8V, 4S, 40C, 5200mAh Lipo battery 2pc
55KG servo 2pcs
B6 charger 1set
Low voltage alarm 2pc
Spare screws for car. numbers
Multi – function wrench. 1pc
Hexagon screwdriver. 1pc
Tire sleeve. 1pc
Applications: Ronin-S Gimbal Car/Ronin-SC Gimbal Car/Ronin-MX Gimbal Car/Ronin-M Gimbal Car/Ronin 2 Gimbal Car/Shotover G1 Gimbal Car/Freefly MOVI Gimbal CAR.
