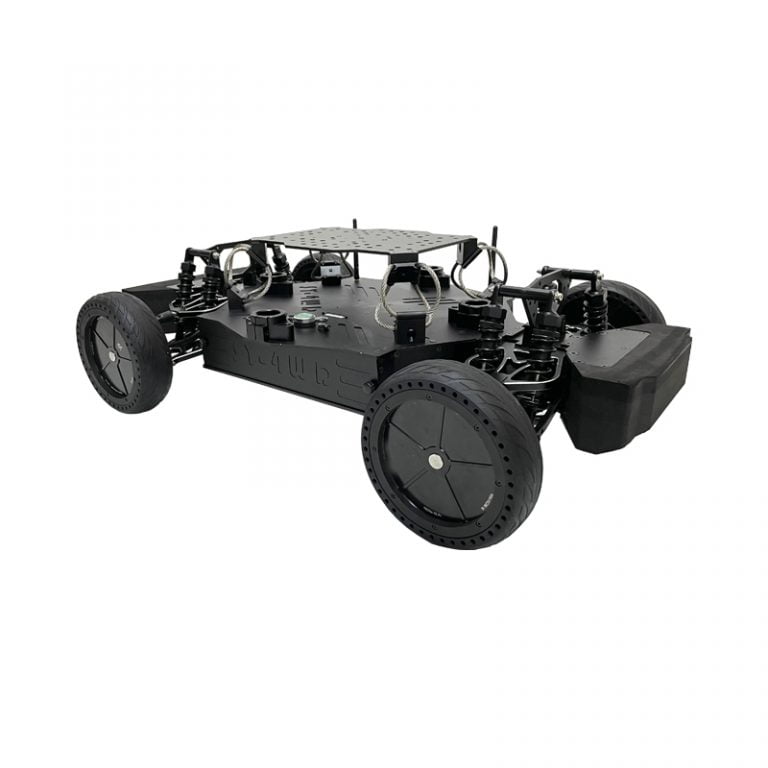

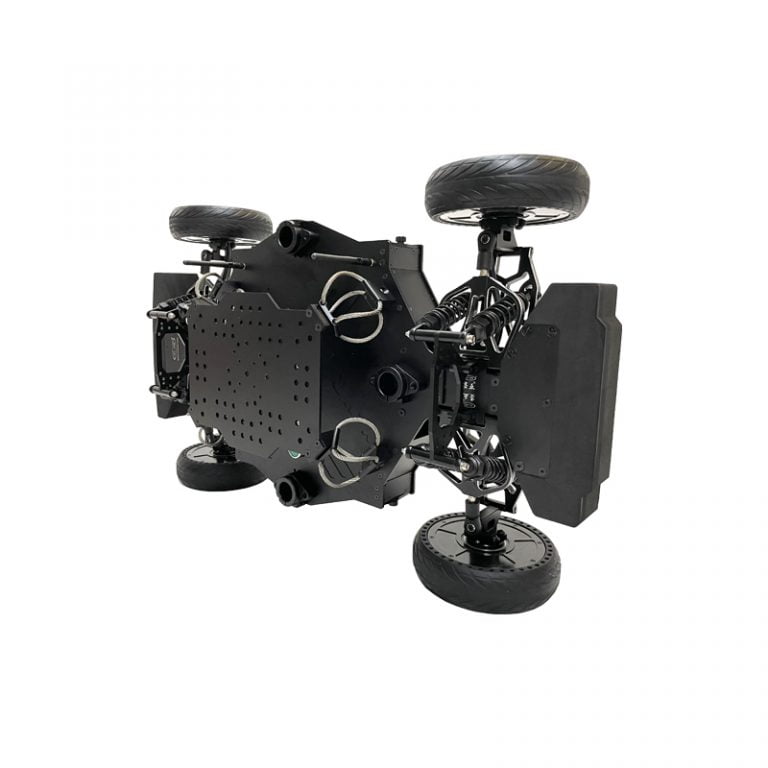

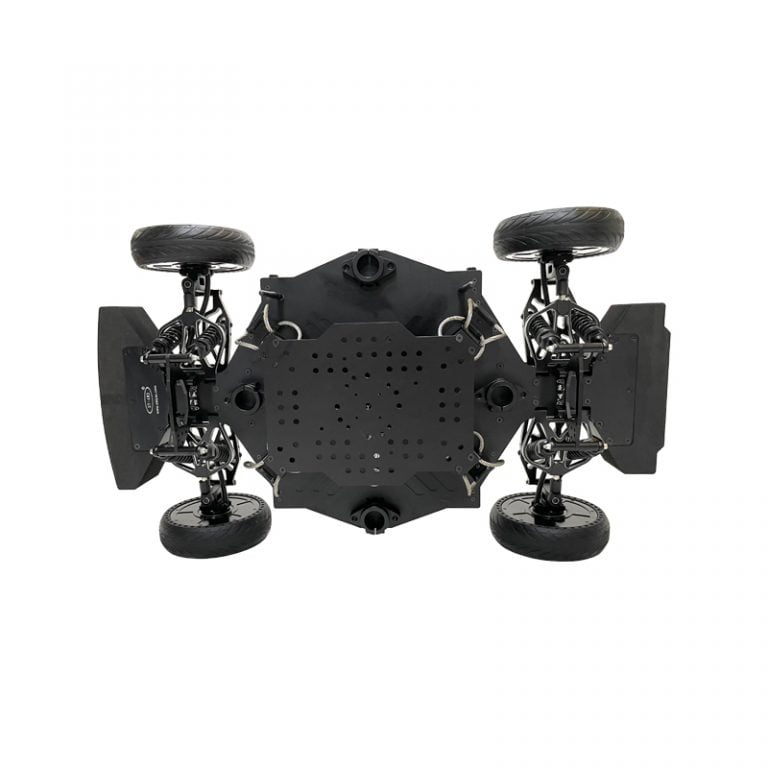

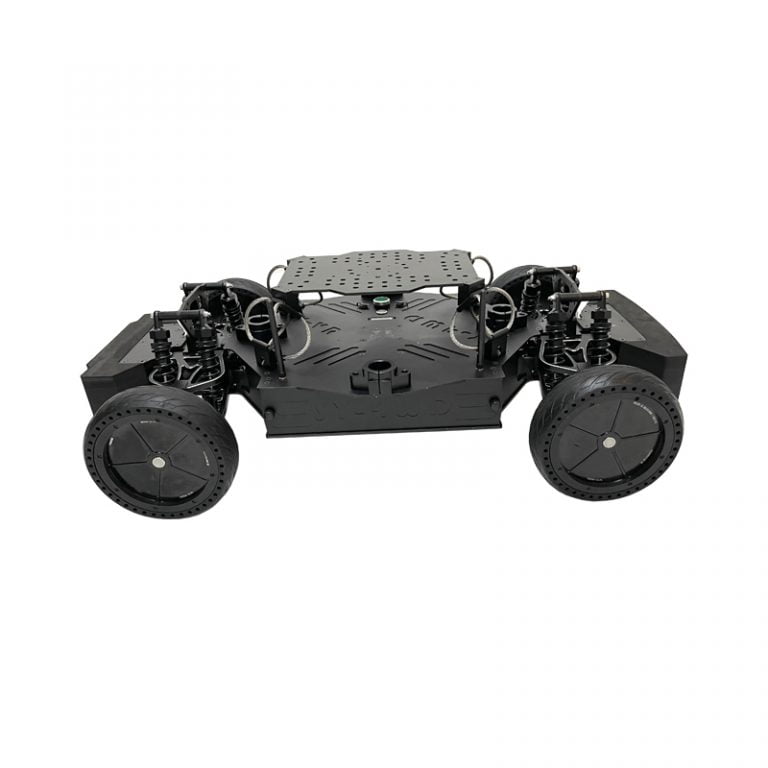

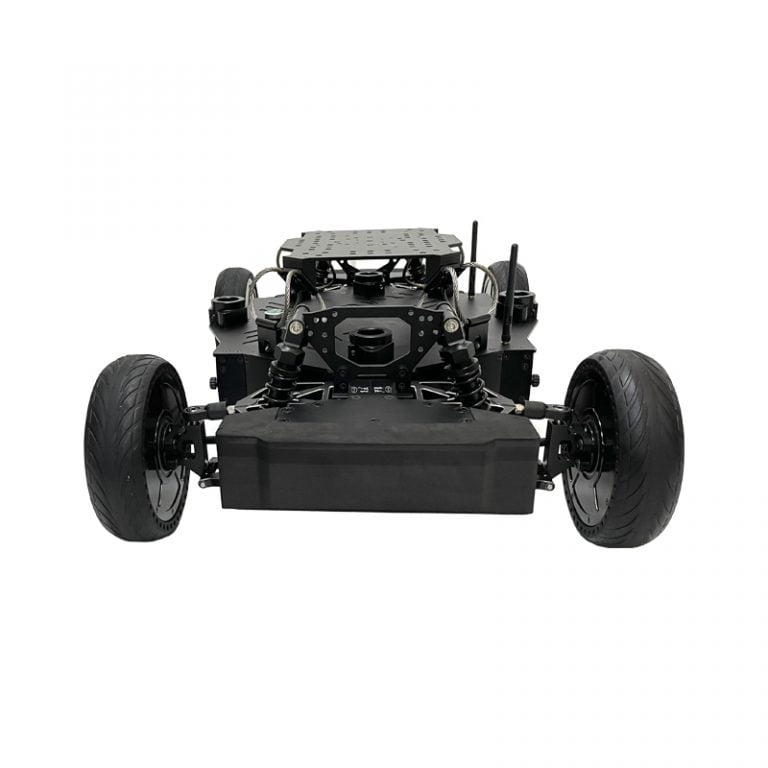

Four-Wheel Differential Robot Chassis
-Unmanned robot chassis, wire control chassis, ROS robot chassis for scientific research, patrol robot chassis, logistics distribution robot chassis. Support ROS/unmanned driving secondary development.
Model: SK S880
Dimension: 870 * 520 * 2
50mm (L * W * H)
Net weight: about 24kg
Structure: four-wheel drive, four-wheel differential
Suspension: independent suspension system, damping system
Ground clearance: 80mm
Wheel base: 570mm
Wheel track: 465mm
Tyre diameter: 187mm
Drive motor: servo hub motor, 288W * 4
Power battery: lithium battery 24V 20Ah, large capacity battery can be customized
Charger: 29.6V, 10A, manual charging mode
Control mode: 2.4G remote control
Minimum turning radius: 0, in-situ differential 360 ° rotation
Power display: yes
Braking mode: motor braking
Parking mode: motor parking
Payload: 30kg
Running speed: 4km/h
Duration: about 4 hours
Wading depth: 50mm
Maximum climbing angle: 15% full load, 30% no-load
Crossing width: 50mm under full load
Protection grade: IP54
Communication mode: support CAN communication
Anti collision structure: front and rear anti-collision plates
