Features:

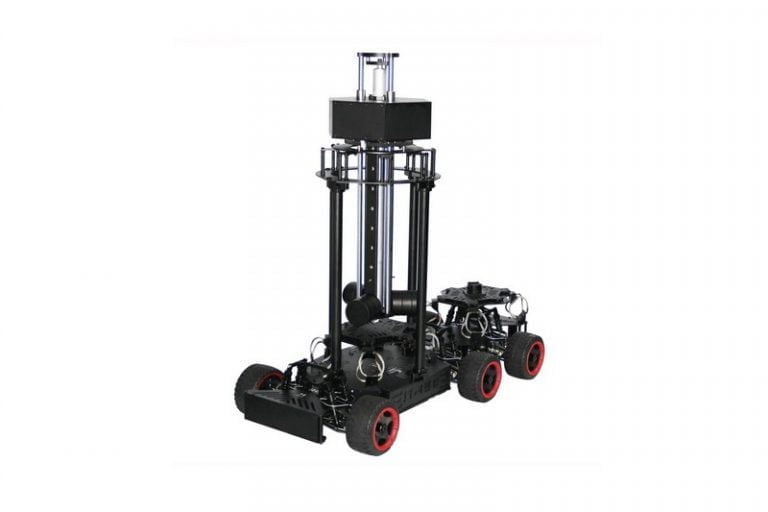

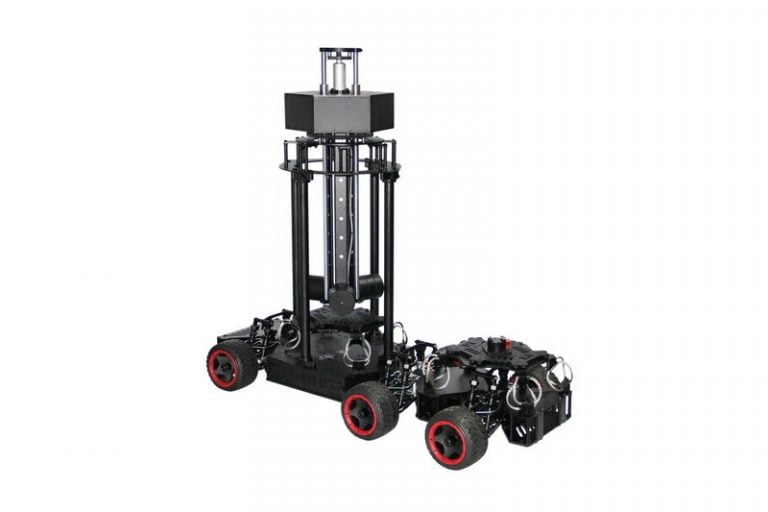

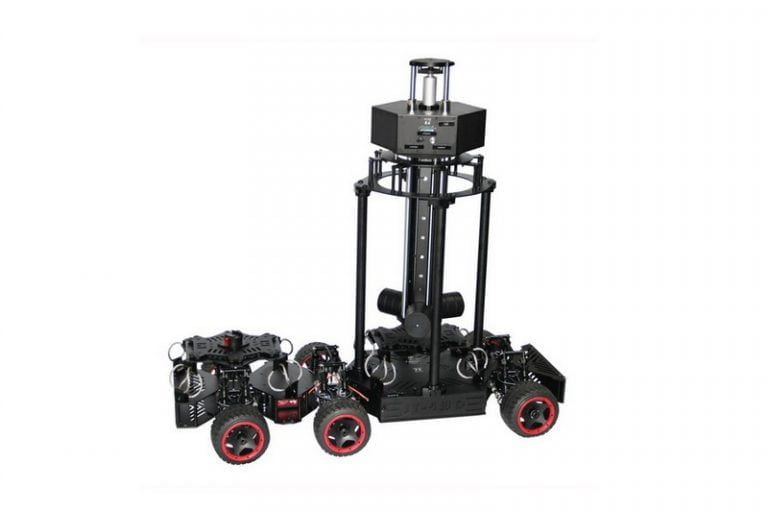

SK VR1 6WD RC VR Camera Car+ Auto lifting & rotating Stabilizer, it is used for 360 VR video shooting and also suitable for low-angle motion shooting with three-axis stabilizers and professional cameras.
Innovative products-Utility Model Patent No.: ZL201720185813.1
Functions:
* Full metal material: high strength CNC 6061-T6 aluminum, steel gear.
* 6WD Version, six-wheel steering with easy handling and running smoothly, steering is very flexible, high level metal frame.
* Maximum speed: 10km / h
* Max load: 15kg. it is not problem to install JAUNT ONE 11kg or Nokia OZO.
For Cine Camera. Two Cine Camera Position.Dual shock absorption platform for two camera positions, It captures two different angles of shocking lens. sports and shooting, compatible with double DJI, Talta, Zhiyun, Feiyu, Freefly and other brands of three-axis stabilizer and professional dual Cine Camera.
Esp. suitable for DJI RONIN2 and professional Cine Camera.It is suitable for film-makers.
* Using humane and easy operate by remote control: 2.4G 12-Ch LCD Radio control with the maximum distance of 3.5 km.
* Optional video wireless transmission system. With 5.8G digital signal and 1080 high-definition video, the maximum video transmission distance of 5 km.
* Double Damping system:
-12pc Hydraulic shock absorbers independent system parts of the car are not deformed steel wire, shock resistance vibration absorption equilibrium.
– Damping system: front and rear two sets. the middle is steel damping to ensure picture stability when starting and stopping time. Independent system parts are not deformed steel wire, shock resistance vibration absorption equilibrium.
* Mechanical counterweight for the VR stabilizer: to balance the VR Camera and make it is not wobble.
* The VR car professional features:
– fixed speed, constant stable speed running and the speed are adjustable.
– Dual mode: automatic driving and remote control.
– Straight line running, start and stop running smoothly.
– Ultra low speed running and delayed shooting.
– No noise, the car is running for the silence level.
– The car max load: about 35kg.
* The auto lifting and rotating VR stabilizer features:
– 2.4G Radio control
– Auto lifting, lifting speed are adjustable.
– 360 degree rotation, rotating speed are adjustable.
– Comes with stabilization function, no jitter, anti-high frequency jitter;
– The max height is about 165cm and the whole height will reach at 180mm with car together.
– VR stabilizer max load: about 15kg.
– Standard port: suitable for different brand VR panoramic Camera, such as Jaunt one, Nokia OZO, Insta360 Pro, Gopro, Kandao Obsidia, Z Cam S1 and so on.
* Belt drive without noise.
Technical Parameters:
Car size: 1180 * 570 * 280mm
VR bracket height: from 1120 to 1600mm.
Car Net Weight: 28kg.
VR bracket Net Weight: 20.4kg.
Belt drive without noise.
Motor: 200W high power.
Car Battery: 36V, 2.6Ah 93.6Wh capacity lithium battery.
VR bracket Battery: 36V, 2.6Ah 93.6Wh capacity lithium battery, ensure 4 hours of endurance time.
Package:
Wooden Box No.1：G.W: 43kg. Size：110*57.5*27cm
Wooden Box No.2：G.W: 43kg. Size：109*48*42cm
Including:
Car Frame. 1 set
VR bracket (Auto lifting & rotating stabilizer). 1 set
12 channel Remote control. 1pc
12 channel receiver. 2pc
Charger for the batteries . 2pc
36V, 2.6Ah 93.6Wh capacity lithium battery 2pc
55KG servo 3pcs
Low voltage alarm 2pc
Fixed adapter screw for the panoramic camera. 1pc
Spare screws for car. numbers
Multi – function wrench. 1pc
Hexagon screwdriver. 1pc
Tire sleeve. 1pc
